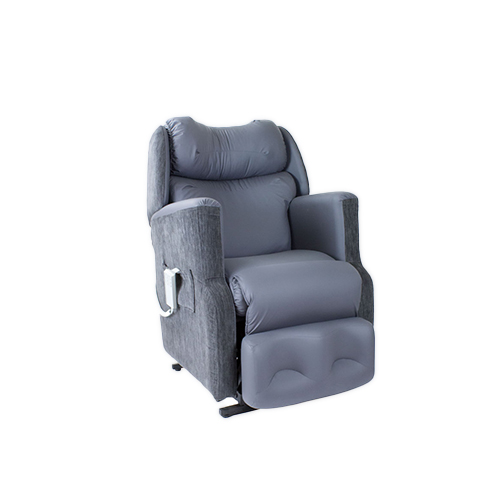

Vertical Lift Chair

Oscar Furniture

Mechanism Type

Oscar Vertical lift Mechanism with Optional Trendelenburg

Upholstery

Large range of leather and fabric options available.

Adjustments

Adjustments can be made to seat height, seat width, seat depth & back height

Max User Weight

Up to 170kg

Seat Cushion

Commercial grade seating foams with options for memory foam and inserts

Lounge Size:1 Seater / Chair Submit quote & we’ll be in touch

Customise your size to suit your needs
One of our product experts will be in touch to provide guidance on the best option.

:

:

Scripted Customization Available

Memory Foam Seat Width Adjustable Back Height Seat Height Gluterial Recess Back height Controller Left or Right Leg Rest Side Walls Concave Back Trendelenburg Drop Down Arms Removable Arms Tablet Arm

Looking to customise? Request a quote and one of our product experts will be in touch for a free consultation.

Quantity

Request a Quote

SKU:CHCEL-M4

Dimensions
Width Height Depth 109 CM 82 CM 68 CM
Product Dimension
Size L (cm) W (cm) H (cm)

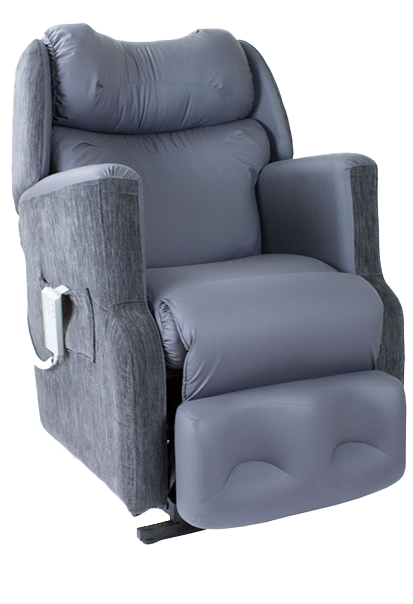

1 Seater / Chair 82 68 109 /media/atwlb0xc/vertical_lift_customize.png
Product Description

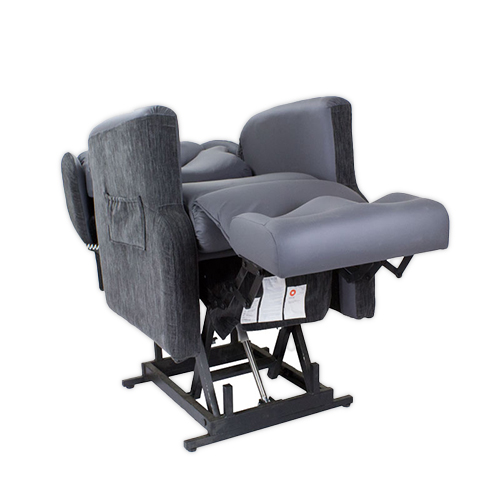

The Vertical Lift recliner is expertly crafted to cater to a diverse spectrum of high care needs. Its vertical lifting feature facilitates smooth transfers, aiding users in moving horizontally or from sitting to standing positions. Sturdy showood arms provide additional support that users can rely on for stability while maneuvering in and out of the chair.

This specialized recliner is particularly sought after by individuals requiring wheelchair assistance, experiencing leg weakness, dealing with vertigo, or simply preferring a standing posture when transitioning from sitting. Offering versatility, the Vertical Lift comes with the option of removable or drop-down arms. This feature serves multiple purposes, including facilitating side transfers and allowing caregivers to provide treatment at an ergonomic height and with user dignity. Whether the user is seated or reclined, the arms can be easily adjusted or detached as needed.

For added comfort and functionality, the chair can be equipped with forward or backward tilt options, enabling Trendelenburg or reverse Trendelenburg positions. Customisations are available to ensure an optimal fit for every user. The Vertical Lift recliner offers three backrest styles: Barwon three roll, Hudson two piece, or a straight backrest, catering to individual preferences. It boasts a weight capacity of up to 170kg, ensuring durability and stability. With a wide selection of upholstery options, users can personalize their recliner to suit their aesthetic and practical needs. Proudly crafted in Australia by Oscar Furniture, the Vertical Lift recliner embodies quality craftsmanship and thoughtful design to meet the unique requirements of users with high care needs.

Documentation
Specification Sheet (PDF | 343 KB)
Protect, Care & Warranty

We want you to have the best possible experience with our products, so we offer a warranty on all of our Oscar Furniture chair components - provided all care guidelines have been followed.



Usage and Care Guidelines

  • Standard Lift Chairs have a 130kg weight capacity.
  • The occupant MUST ease themselves into the chair in the raised position.
  • Slumping in to the chair can damage the mechanism and motor.
  • Do not place anything over power cords, pass ANY cords through the chair, or drag the chair by
  • the power cord.
  • Do not allow children to play on this mechanised furniture.
  • The handset is not fully waterproof. For cleaning it can be wiped over with a damp cloth. Do
  • not submerge in liquid.
  • When lowering the chair, ensure that children and pets are free of the mechanism.

Proof of purchase

All Oscar Chairs are fitted with a compliance card on the rear bottom rail. All cards have a unique ID number called the “SO” number. Warranty is voided if this card is removed.

Specifications

The supply voltage is 240 volts AC, 50Hz. A transformer external to the motor reduces the voltage entering the chair to 24 volts DC. Both motors and the hand control operate at 24 volts DC.

Maintenance

The motors are maintenance free. They are protected by thermal overloads and will stop automatically if operated excessively. If the motors stop after over-use, wait until the motors have cooled before further use.

Battery Backup

This lift chair mechanism has a battery backup capability fitted with two 9 volt batteries. In the event of a power failure the chair will automatically switch to the emergency backup. The purpose of the emergency backup is NOT for continual use in an outage. It is intended for a single use only. Fully rechargeable batteries are also available as an optional extra.

Warranty Timeframes

Motor & Mechanism 2-year warranty on the motor, hand-control, and Okin electrical systems. 1-year warranty on Li-iron full battery backup (optional extra). Where practical, it is the responsibility of the store/distributor to fit replacement parts to the defective chair to minimise repairs times for the end user.
Foam & Frame 5-year warranty on material and workmanship, excluding general wear and tear.
Fabric 2-year warranty on the VersoTela fabric range when the fabric care labels have been followed. Other warranties may apply for fabrics sourced from other suppliers, however if you choose to use an external fabric supplier - Oscar Furniture is not responsible for pursuing the warranty claim.



Warranty Terms

  • All warranties apply from the date of sale.
  • All warranty claims must be made with the store of purchase. It is the store/distributors responsibility to liaise with Oscar Furniture for warranty claims.
  • If the chair requires shipping back to Oscar Furniture for assessment, the distributor is to cover the freight cost, which will be reimbursed if Oscar Furniture detects a fault covered under warranty.
  • If you choose to use a fabric outside of the VersoTela range, Oscar Furniture is not responsible
  • for faults relating to fabric (except for issues relating to workmanship).

Warranty claims will not be fulfilled under the following circumstances:

  • Minor variations in the quality of a product which does not affect the product’s value of fitness for its intended purpose.
  • Faults resulting from improper use as outlined in the usage and care guidelines.
  • Faults due to wear and tear.
  • Any modification made to an Oscar Furniture product by the consumer or a third party without prior written approval from Oscar Furniture to the nature and extent of the modification.
